Starting at
$102,999.00
Seating capacity
12
Dry weight
4,142 LBS
Length
24' 6"
Fuel capacity
75 GAL
Interior color
White
Gray
252XE Full Specifications
| Length | 24' 6" |
|---|---|
| Weight (lbs) | 4557 |
| Beam | 8'6" |
| Draft | 19" |
| Dead Rise | 20° |
| In-Water Height (Bridge Clearance) | 8'1" |
| Fuel Tank Capacity (gal) | 75 |
| Seating Capacity/Weight Capacity | 12 |
| Weight Capacity (lbs) | 2350 |
| Storage Capacity (gal) | 613 |
| Height on Trailer | 11' |
| Height on Trailer with Tower Folded | 9'3" |
| Length on Trailer | 26'3" |
| Length on Trailer with Tongue Folded | 24'8" |
| Dry Weight on Trailer (lbs) | 5760 |
| Snap-In Custom Cut Marine-Grade Mat | |
|---|---|
| Ski Locker | |
| Removable Dinette Table with Pedestal | Mount at Stern |
| Bow Filler Inserts for Multiple Seating Configurations | |
| Hinged Seat Cushions | |
| Tilt Steering | |
| Upgraded Steering Wheel | |
| Upgraded Upholstery | |
| Adjustable Captain's chair with Flip-Up Bolster | |
| Passenger-side Captain's Chair | |
| Portside Entertainment Area | |
| Lockable Passenger Side Glove Box | |
| Walk-through Bow Door | |
| Integrated Removable Cooler | |
| Head Compartment | With wardrobe storage features, upholstered interior & light |
| Galley with Stow-in-Place Table and Storage | |
| Docking Lights | |
| Courtesy Deck Lighting | |
| Courtesy Tower Lighting | |
| Dedicated Anchor and Rope Locker | |
| Bow Reboarding Ladder | |
| Upgraded Aluminum Handles & Accents | |
| Cockpit Drainage System (CDS) |
| Integrated Swim Platform | |
|---|---|
| Upholstered Cushioned Seats | |
| Upholstered Cushioned Backrests | |
| 12-volt Outlet | |
| Stainless Steel Telescopic Reboarding Ladder | |
| Dinette Table Mount | |
| Custom Cut Marine-Grade Mat | |
| Stern (Wet) Storage | |
| Disk Brakes | Yes |
| Freshwater Shower | No |
| Marine Stereo | Yes |
| Marine-Grade Mat | Yes |
| Stern Filler Cushions | No |
| Swim-up Seat Accessory Included | No |
| Underwater Light | Yes |
| Integrated Swim-up Seat | No |
| Helm Connext Screen (in) | 12.3 |
|---|---|
| MFD w/ Maps | |
| Yamaha E-Series Features | |
| Drive-By-Wire Technology | |
| Helm Switch Panels | Black |
| Wireless Charging Points | Yes |
| Marine Speakers | (7) Hertz |
| Tower Speakers | 2 Wet Sounds |
| Stern Stereo Remote | |
| Stern Speakers | |
| 3 position "No Wake Mode™" Control | |
| Cruise Assist | |
| Battery Setup | Dual |
| Rack & Pinion Steering | |
| Quiet Cruise Technology | |
| Integrated Ballast System | |
| Toe-in Jet Nozzle Position | |
| Articulating Keel System | |
| Boat Wellness Function Display | Yes |
| Connext Screen (in) | 12.3" Display with Maps & Joystick |
| Connext with Touchscreen | 12.3" display w/ maps & joystick |
| DRiVE | No |
| DRiVE X | No |
| Depth Finder | Yes |
| Drive Control | Yes |
| Electronic Speedometer | Yes |
| Integrated Electric WakeBooster | No |
| Yamaha Marine Engine | Twin 4-cylinder, 4-stroke, 1.9 Liter High Output Yamaha Marine Engines |
|---|---|
| Displacement (per engine) | 3624CC |
| Fuel Capacity | 75 GAL |
| Recommended Fuel | Regular Unleaded |
| 155 MM High-Pressure Pump | |
| Pump Clean-out Ports | |
| Oil Capacity per Engine (L) | 2.6 |
| Fuel Management System | Yes |
| Fuel Tank Capacity (gal) | 75 Gal |
| Fuel Capacity (gal) | 75 Gal |
| Bow Rails | |
|---|---|
| Stainless Steel Pop-Up Cleats | 7 |
| Tow Hook | |
| BiminiTM Top | |
| Aluminum Folding Wakeboard Tower with Tow Hook | |
| Wakeboard Racks | |
| Windshield Mirror | |
| Bimini™ Top | Yes |
| Color | Dolphin Gray / Powder Blue |
| Hard Top with Panoramic Tinted Skylights | No |
| Head Compartment | With wardrobe storage features, upholstered interior & light |
| Premium Windshield Frame | No |
| Stainless Steel Bow Rails | Yes |
| Stainless Steel Cleats | 7 Pop-up |
| Hard Top | No |
| Painted Trailer with Swing-away Tongue | |
|---|---|
| Galvanized Trailer with Swing-away Tongue | Optional (Tandem Axle) |
| Spare Tire and Mount | |
| Height on Trailer | 11' |
| Height on Trailer with Tower Folded | 9'3" |
| Length on Trailer | 26'3" |
| Length on Trailer with Tongue Folded | 24'8" |
| Dry Weight on Trailer (lbs) | 5760 |
| Lights | Yes |
| 144 MM High-Pressure Pump | |
|---|---|
| 155 MM High-Pressure Pump | |
| 160 MM High-Pressure Pump |
| BoatWaterCapacityshowersink | No |
|---|---|
| Water Tank Capacity (gal) | No |
Get Local Price
Superior Design Meets Function
The 252XE, with its combined 400 horsepower, seamlessly integrates top watersports features with advanced technology to enhance your day on the water.

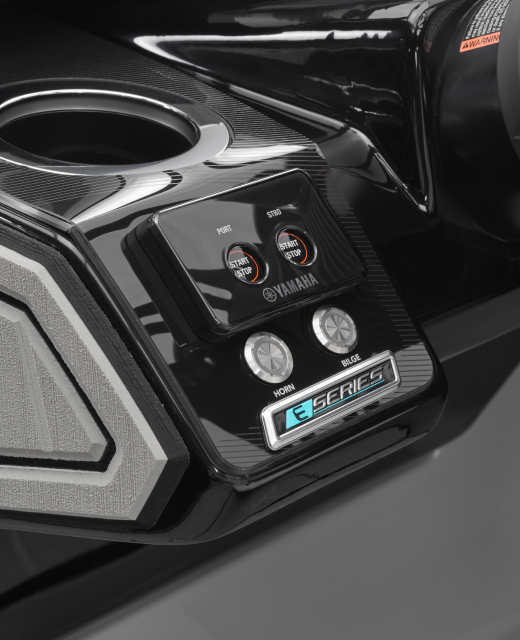

E-Series® Throttle Control
Equipped with advanced Electronic Throttle Control, the system includes push button start/stop, RPM engine sync, and single throttle lever pairing.

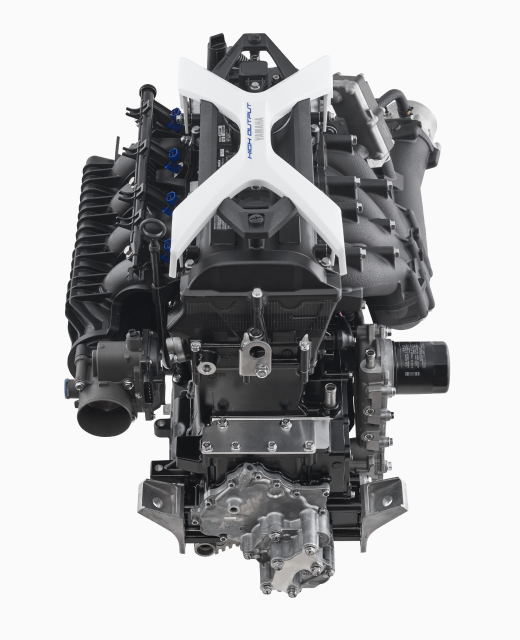

TWIN 1.9L HIGH OUTPUT YAMAHA MARINE ENGINES
These twin four-stroke, four-cylinder, 16-valve High Output Yamaha marine engines deliver smooth acceleration and impressive top speed, providing excellent towing power for all your watersports activities.

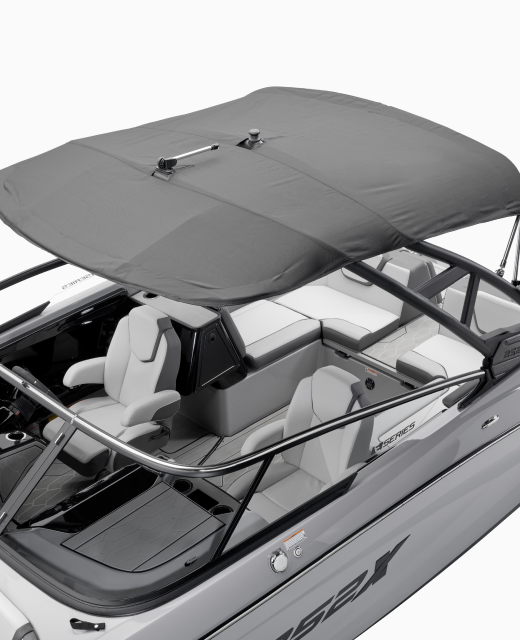

Bimini Top
Enjoy the comfort and protection provided by the premium Bimini top that offers ample shade from the sun, helping to keep you cool on hot days, and provides shelter from unexpected inclement weather.

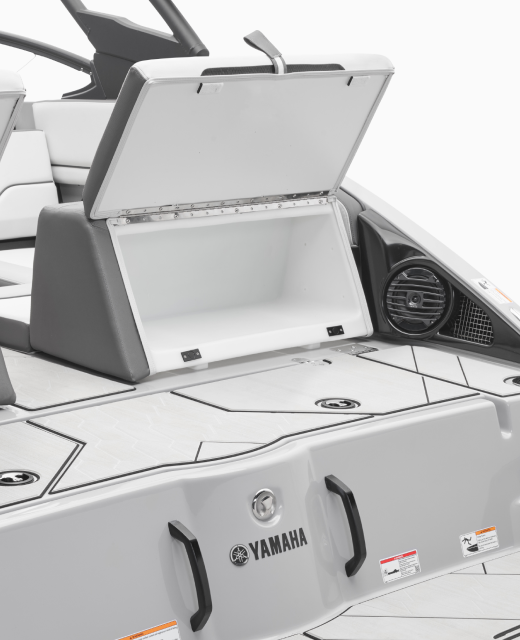

Stern Seatback Storage
Enjoy the convenience of flip-up seat-back rests at the stern, providing easy access to additional storage space. This thoughtful design allows you to keep essential items close at hand while maximizing the use of available space.

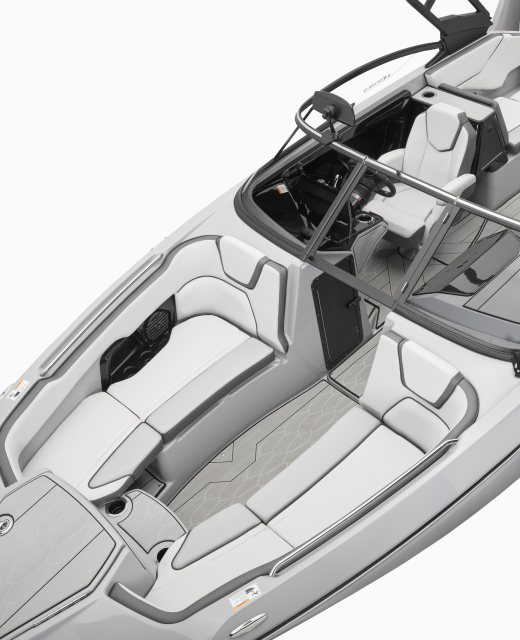

Spacious Interior
This 25-foot platform has a spacious interior, making it feel larger than its size. Yamaha takes advantage of every inch of room, providing a significantly more comfortable riding experience.

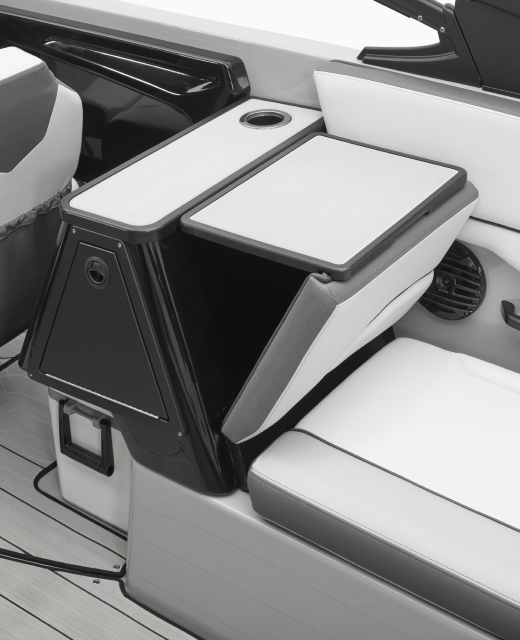

Premium Prep Area
Effortlessly prepare for entertaining by flipping up the galley table located behind the captain's chair, transforming the space in seconds.
