SX250 Full Specifications
| Length | 24' 6" |
|---|---|
| Dry Weight (lbs) | 3,931 |
| Beam | 8'6" |
| Draft | 19" |
| Dead Rise | 20° |
| In-Water Height (Bridge Clearance) | 4'10" |
| Fuel Tank Capacity (gal) | 75 |

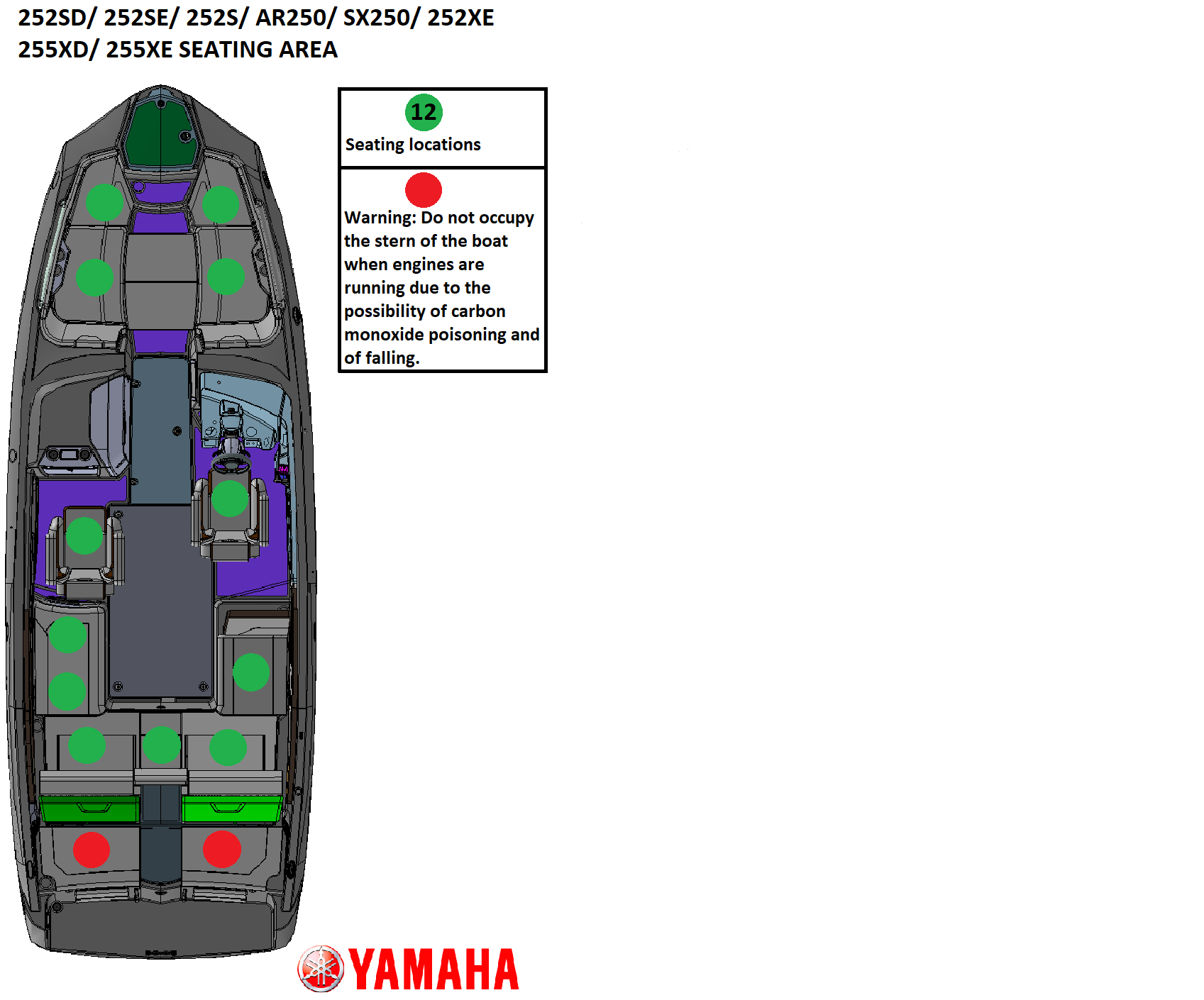

| Seating Capacity (people) | 12 |
| Weight Capacity (lbs) | 2600 |
| Storage Capacity (gal) | 731 |
| Height on Trailer | 7'10" |
| Length on Trailer | 26'3" |
| Length on Trailer with Tongue Folded | 24'8" |
| Dry Weight on Trailer (lbs) | 5,134 |
| Snap-in Marine-Grade Woven Floor Mat | |
|---|---|
| Ski Locker | |
| Removable Dinette Table with Pedestal | Mounts at Cockpit and Stern |
| Bow Filler Inserts for Multiple Seating Configurations | |
| Hinged Seat Cushions | |
| Tilt Steering | |
| Adjustable Captain's Chair with Flip-up Bolster | |
| Passenger-side Captain's Chair | |
| Portside Entertainment Area | |
| Lockable Passenger Side Glove Box | |
| Walk-through Bow Door | |
| Integrated Removable Cooler | |
| Head Compartment | With light |
| Courtesy Deck Lighting | |
| Dedicated Anchor and Rope Locker | |
| Bow Reboarding Ladder | |
| Upgraded Aluminum Handles & Accents | |
| Cockpit Drainage System (CDS) |
| Integrated Swim Platform | |
|---|---|
| Upholstered Cushioned Backrests | Yes |
| 12-volt Outlet | |
| Stainless Steel Telescopic Reboarding Ladder | |
| Dinette Table Mount | |
| Marine-Grade Mat | |
| Stern (Wet) Storage | |
| Factory Installed Swim-up Seat Bracket | |
| Disk Brakes | Yes |
| Freshwater Shower | No |
| Marine Stereo | Yes |
| Stern Filler Cushions | No |
| Swim-up Seat Accessory Included | No |
| Underwater Light | No |
| Upholstered Cushioned Seats | No |
| Integrated Swim-up Seat | No |
| Helm Connext Screen (in) | 7 |
|---|---|
| MFD w/ Maps | |
| Wireless Charging Points | Yes |
| Marine Speakers | 6 |
| Stern Stereo Remote | |
| Stern Speakers | |
| 3 position "No Wake Mode™" Control | |
| Cruise Assist | |
| Battery Setup | Dual |
| Rack & Pinion Steering | |
| Quiet Cruise Technology | |
| Articulating Keel System | |
| Boat Wellness Function Display | Yes |
| Connext Screen (in) | 7" Display with Maps & Joystick |
| Connext with Touchscreen | 7" dipslay w/ maps & joystick |
| DRiVE | No |
| DRiVE X | No |
| Depth Finder | Yes |
| Drive Control | No |
| Drive-By-Wire Technology | No |
| Electronic Speedometer | Yes |
| Enclosed Head Compartment | With light |
| Helm Switch Panels | No |
| Integrated Ballast System | No |
| Integrated Electric WakeBooster | No |
| Toe-in Jet Nozzle Position | No |
| Yamaha Marine Engine | Twin 4-cylinder, 4-stroke, 1.9 Liter High Output Yamaha Marine Engines |
|---|---|
| Displacement (per engine) | 3796CC |
| Fuel Capacity (gal) | 75 Gal |
| Recommended Fuel | Regular Unleaded |
| 155 MM High-Pressure Pump | |
| Pump Clean-out Ports | |
| Oil Capacity per Engine (L) | 2.6 |
| Fuel Management System | Yes |
| Fuel Tank Capacity (gal) | 75 Gal |
| Bow Rails | |
|---|---|
| Stainless Steel Pop-up Cleats | 7 |
| Tow Hook | |
| BiminiTM Top | |
| Aluminum Folding Wakeboard Tower with Tow Hook | No |
| Bimini™ Top | Yes |
| Color | Dolphin Gray |
| Hard Top with Panoramic Tinted Skylights | No |
| Premium Windshield Frame | No |
| Stainless Steel Bow Rails | Yes |
| Stainless Steel Cleats | 7 Pop-up |
| Wakeboard Racks | Optional |
| Windshield Mirror | N/A |
| Hard Top | No |
| Painted Trailer with Swing-away Tongue | |
|---|---|
| Galvanized Trailer with Swing-away Tongue | Optional (Tandem Axle) |
| Spare Tire and Mount | |
| Height on Trailer | 7'10" |
| Length on Trailer | 26'3" |
| Length on Trailer with Tongue Folded | 24'8" |
| Dry Weight on Trailer (lbs) | 5134 |
| Lights | Yes |
| 144 MM High-Pressure Pump | |
|---|---|
| 155 MM High-Pressure Pump | |
| 160 MM High-Pressure Pump |
Get Local Price
Exceed Your Expectations
With 400 horsepower, an innovative hull design, ample storage, and a functional layout, this boat is an unbeatable value.

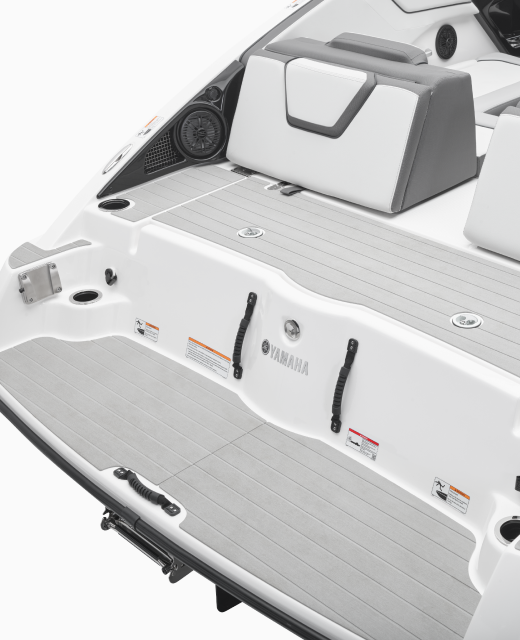

Signature Swim Platform
This signature swim platform features plush rear-facing lounge seating, providing ample room to stretch out. It also includes quick access to the patented clean-out ports, allowing you to clear debris from the jet pump while staying dry.

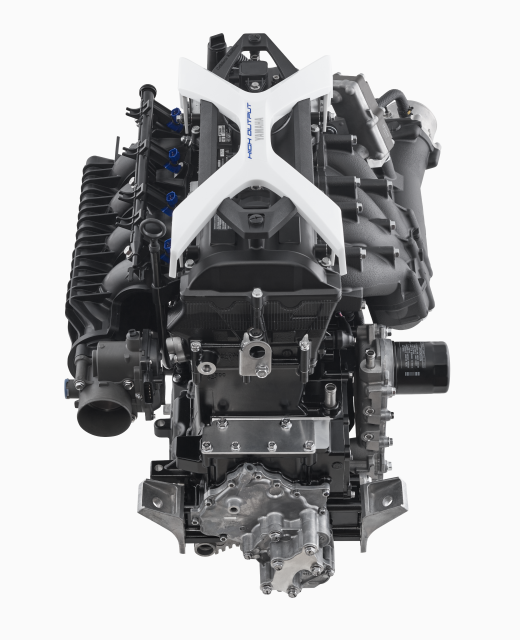

TWIN 1.9L HIGH OUTPUT YAMAHA MARINE ENGINES
These twin four-stroke, four-cylinder, 16-valve High Output Yamaha marine engines deliver smooth acceleration and impressive top speed, providing excellent towing power for all your watersports activities.

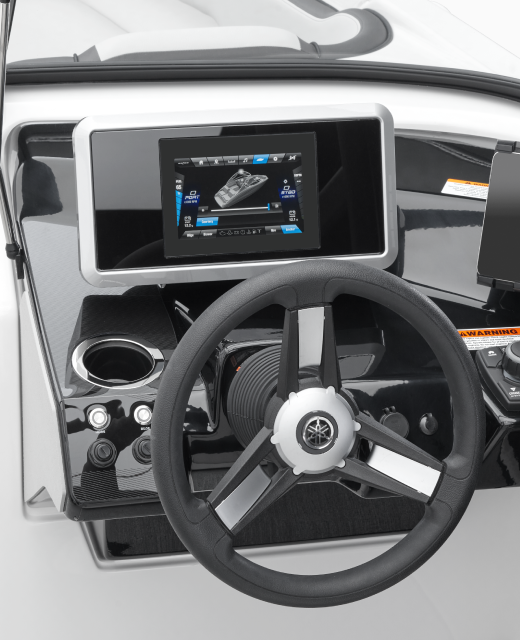

Floating Helm with Connext® Touchscreen
The minimalistic "floating" helm design contributes to a sophisticated and stylish helm layout, creating a sleek and modern appearance.

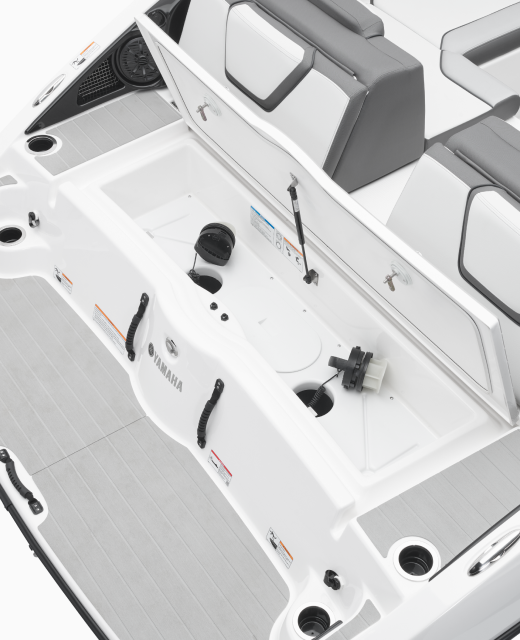

Jet Pump Clean-out Port
Yamaha's patented jet pump cleanout port is designed for easy debris clearing without getting wet.

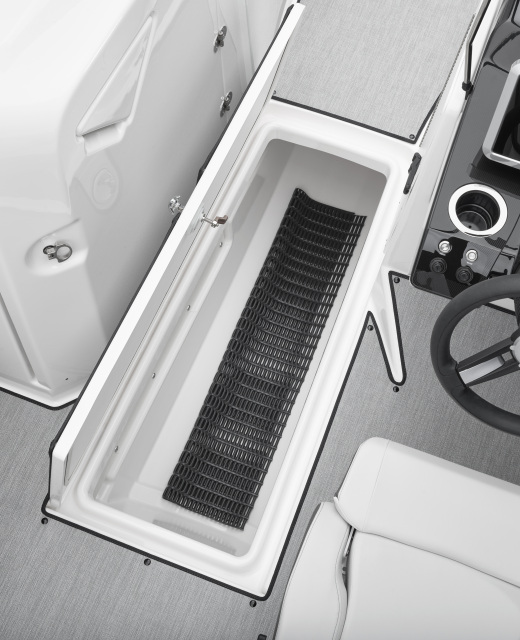

In-Floor Storage
Designed for your convenience, the oversized in-floor storage compartment holds wakeboards and extra gear, keeping your boat clutter-free and your items easily accessible.

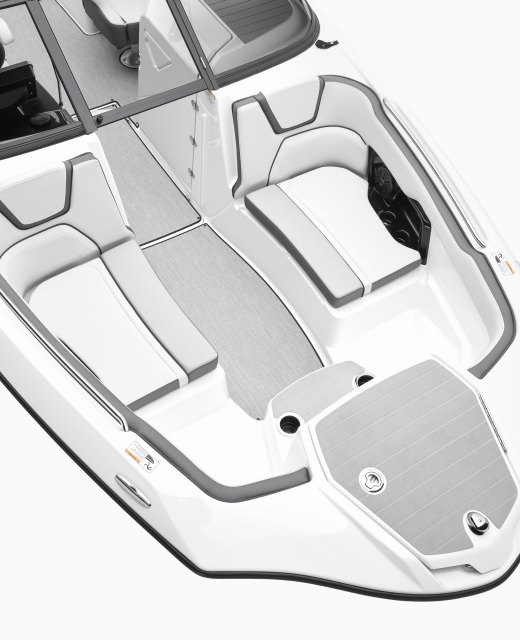

Bow Seating
The innovative deck design maximizes space for lounging, ensuring comfort and versatility. With bow filler cushions, you can transform the area into a spacious lounge, perfect for relaxing and soaking up the sun.
