AR190 Full Specifications
| Length | 19'5" |
|---|---|
| Dry Weight (lbs) | 2,434 |
| Beam | 8'2" |
| Draft | 15" |
| Dead Rise | 18° |
| In-Water Height (Bridge Clearance) | 7'6" |
| Fuel Tank Capacity (gal) | 40 |
| Seating Capacity (people) | 8 |
| Weight Capacity (lbs) | 1600 |
| Storage Capacity (gal) | 422 |
| Height on Trailer | 10'2" |
| Height on Trailer with Tower Folded | 7' |
| Length on Trailer | 21'2" |
| Length on Trailer with Tongue Folded | 19'5" |
| Dry Weight on Trailer (lbs) | 3,111 |
| Snap-in Teak-Style Marine-Grade Carpet | |
|---|---|
| Ski Locker | |
| Removable Dinette Table with Pedestal | Mount at Cockpit |
| Hinged Seat Cushions | |
| Integrated Drink Holders | |
| Tilt Steering | |
| Adjustable Captain's Chair with Flip-up Bolster | |
| Integrated Removable Cooler | |
| Courtesy Deck Lighting | |
| Dedicated Anchor and Rope Locker | |
| Cockpit Drainage System (CDS) | |
| 12-volt Outlet |
| Integrated Swim Platform | |
|---|---|
| Upholstered Cushioned Backrests | |
| Stainless Steel Telescopic Reboarding Ladder | |
| Marine-Grade Mat | |
| Stern (Wet) Storage | |
| Factory Installed Swim-up Seat Bracket | |
| Dinette Table Mount | Mount at cockpit |
| Disk Brakes | Yes |
| Freshwater Shower | No |
| Marine Stereo | Yes |
| Stern Filler Cushions | No |
| Swim-up Seat Accessory Included | No |
| Underwater Light | No |
| Upholstered Cushioned Seats | No |
| Integrated Swim-up Seat | No |
| Helm Connext Screen (in) | 5 |
|---|---|
| Marine Speakers | 4 |
| 3 position "No Wake Mode™" Control | |
| Cruise Assist | |
| Battery Setup | Single |
| Rack & Pinion Steering | |
| Quiet Cruise Technology | |
| Articulating Keel System | |
| Boat Wellness Function Display | Yes |
| Connext Screen (in) | 5" Touchscreen Display |
| Connext with Touchscreen | 5" |
| DRiVE | No |
| DRiVE X | No |
| Depth Finder | Yes |
| Drive Control | No |
| Drive-By-Wire Technology | No |
| Electronic Speedometer | Yes |
| Enclosed Head Compartment | N/A |
| Helm Switch Panels | No |
| Integrated Ballast System | No |
| Integrated Electric WakeBooster | No |
| Stern Speakers | No |
| Stern Stereo Remote | No |
| Toe-in Jet Nozzle Position | No |
| Wireless Charging Points | No |
| Yamaha Marine Engine | Single 4-cylinder, 4-stroke, 1.9 Liter High Output Yamaha Marine Engine |
|---|---|
| Displacement (per engine) | 1898cc |
| Fuel Capacity (gal) | 40 Gal |
| Recommended Fuel | Regular Unleaded |
| 155 MM High-Pressure Pump | |
| Pump Clean-out Ports | |
| Oil Capacity per Engine (L) | 2.6 |
| Fuel Management System | Yes |
| Fuel Tank Capacity (gal) | 40 Gal |
| Stainless Steel Fixed Cleats | 6 |
|---|---|
| Tow Hook | |
| BiminiTM Top | |
| Aluminum Folding Wakeboard Tower with Tow Hook | |
| Windshield Mirror | |
| Bimini™ Top | Yes |
| Color | Black / Powder Blue |
| Hard Top with Panoramic Tinted Skylights | No |
| Head Compartment | N/A |
| Premium Windshield Frame | No |
| Stainless Steel Bow Rails | No |
| Stainless Steel Cleats | 6 |
| Wakeboard Racks | Optional |
| Bow Rails | No |
| Hard Top | No |
| Painted Trailer with Swing-away Tongue | Single Axle |
|---|---|
| Galvanized Trailer with Swing-away Tongue | Optional (Single Axle) |
| Height on Trailer | 10'2" |
| Height on Trailer with Tower Folded | 7' |
| Length on Trailer | 21'2" |
| Length on Trailer with Tongue Folded | 19'5" |
| Dry Weight on Trailer (lbs) | 3111 |
| Lights | Yes |
| 144 MM High-Pressure Pump | |
|---|---|
| 155 MM High-Pressure Pump | |
| 160 MM High-Pressure Pump |
| BoatWaterCapacityshowersink | No |
|---|---|
| BoatWeight | 2434 |
| Water Tank Capacity (gal) | No |
Get Local Price
Watersports Ready
Effortless ownership meets advanced features and stylish design at a great value. Watersports-ready, the AR190 is easy to own and appreciate.

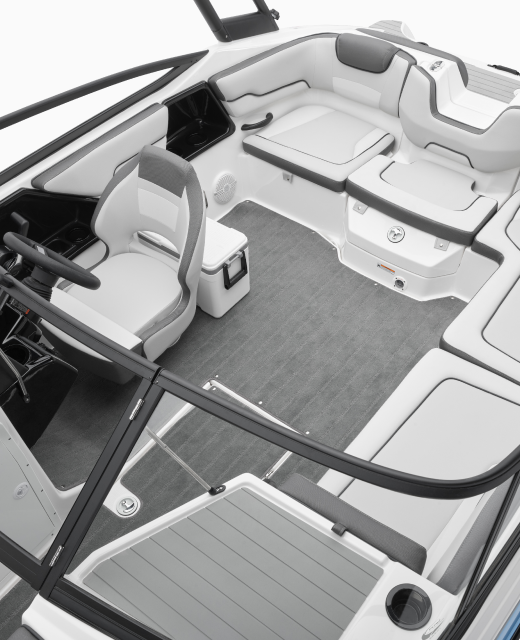

Spacious Interior
The 19-foot platform has a spacious interior as well as large bow and cockpit areas, creating a significantly roomier, more comfortable riding experience.

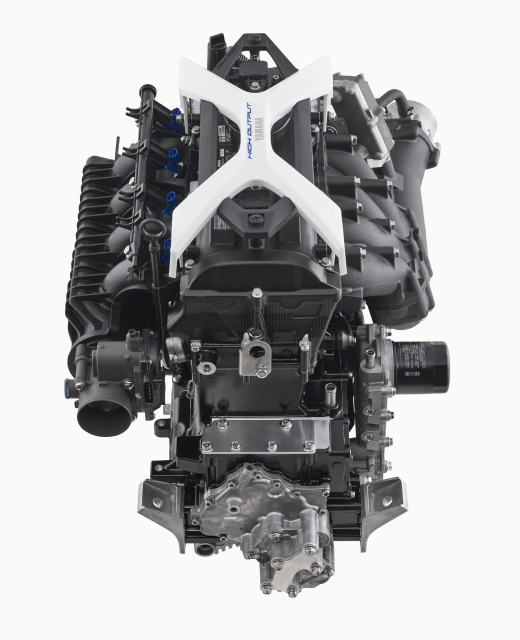

1.9L High Output Yamaha Marine Engine
This four-stroke, four-cylinder, 16-valve powerhouse delivers quick, smooth acceleration and achieves class-leading top speeds.

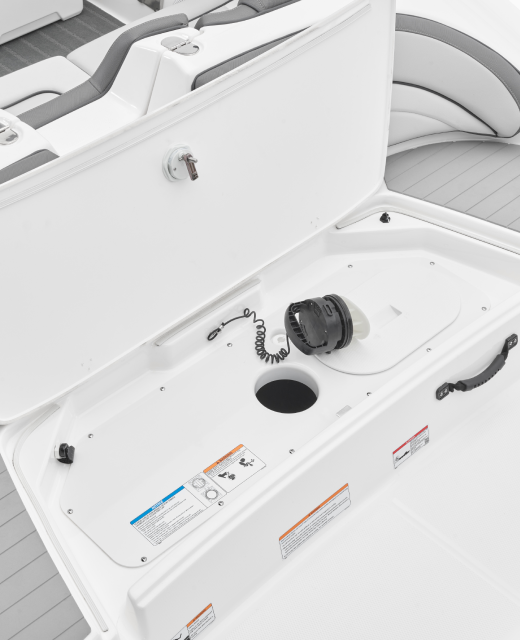

Jet Pump Clean-out Ports
Yamaha's patented jet pump cleanout port is designed for easy debris clearing without getting wet.

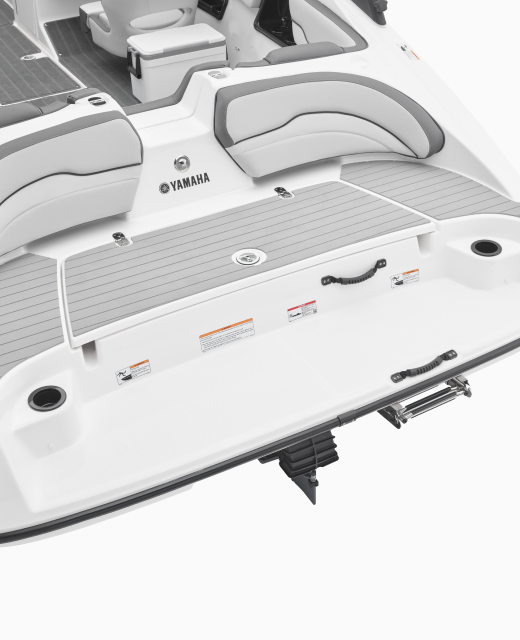

Signature Swim Platform
Now featuring factory-installed hardware for an optional swim-up seat, this comfortable lounge area includes beverage mounts, plush backrest cushions, and easy access to the jet pump cleanout ports.

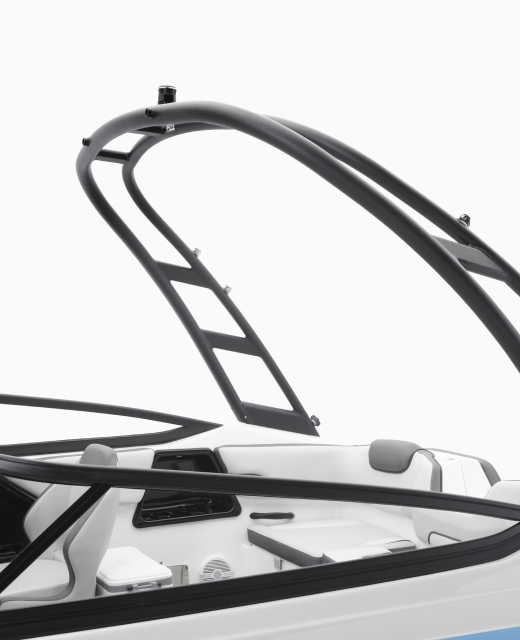

Watersports Tower
Combining functionality and sleek styling, the forward-swept aluminum tower is designed for all your watersports outings.

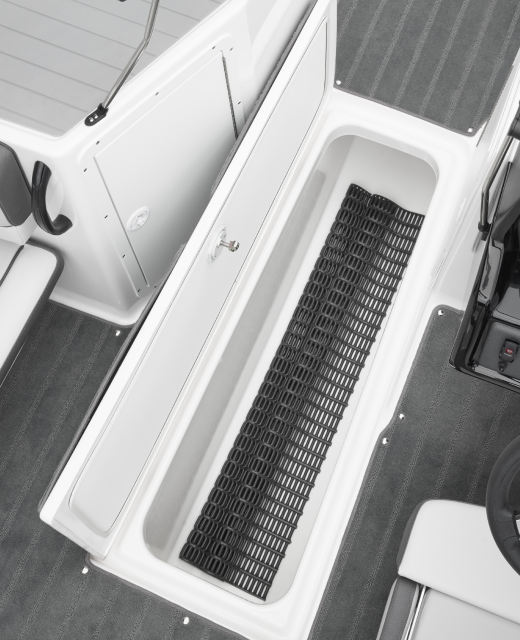

In-Floor Storage
Designed for your convenience, the oversized in-floor storage compartment holds wakeboards and extra gear, keeping your boat clutter-free and your items easily accessible.
