Starting at
$94,999.00
Seating capacity
10
Dry weight
4,118 LBS
Length
22'
Fuel capacity
70 GAL
Interior color
Cognac
Charcoal
222XD Full Specifications
| Length | 22' |
|---|---|
| Weight | 4118 |
| Beam | 8'6" |
| Draft | 19" |
| Dead Rise | 20° |
| In-Water Height (Bridge Clearance) | 7'7" |
| Fuel Tank Capacity (gal) | 70 |
| Seating Capacity (people) | 10 |
| Weight Capacity (lbs) | 2,050 |
| Storage Capacity (gal) | 502 |
| Height on Trailer | 11' |
| Height on Trailer with Tower Folded | 9'11" |
| Length on Trailer | 24' |
| Length on Trailer with Tongue Folded | 22'6" |
| Dry Weight on Trailer (lbs) | 5391 |
| Snap-In Custom Cut Marine-Grade Mat | |
|---|---|
| Ski Locker | |
| Removable Dinette Table with Pedestal | Mounts at cockpit and stern (features Marine Mat) |
| Bow Filler Inserts for Multiple Seating Configurations | |
| Hinged Seat Cushions | |
| Tilt Steering | |
| Upgraded Steering Wheel | |
| Upgraded Upholstery | |
| Cool Comfort Vinyl Upholstery | |
| Adjustable Captain's chair with Flip-Up Bolster | |
| Passenger-side Captain's Chair | |
| Portside Entertainment Area | |
| Lockable Passenger Side Glove Box | |
| Walk-through Bow Door | |
| Integrated Removable Cooler | |
| Docking Lights | |
| Courtesy Deck Lighting | |
| Courtesy Tower Lighting | |
| Dedicated Anchor and Rope Locker | |
| Bow Reboarding Ladder | |
| Upgraded Aluminum Handles & Accents | |
| Cockpit Drainage System (CDS) | |
| LED Accent Lighting |
| Integrated Swim Platform | |
|---|---|
| Upholstered Cushioned Seats | |
| Upholstered Cushioned Backrests | Yes |
| 12-volt Outlet | |
| Stainless Steel Telescopic Reboarding Ladder | |
| Custom Cut Marine-Grade Mat | |
| Dinette Table Mount | |
| Stern (Wet) Storage | |
| Disk Brakes | Yes |
| Freshwater Shower | No |
| Marine Stereo | Yes |
| Marine-Grade Mat | Yes |
| Stern Filler Cushions | No |
| Swim-up Seat Accessory Included | No |
| Underwater Light | Yes |
| Integrated Swim-up Seat | No |
| DRiVE | |
|---|---|
| Helm Connext Screen (in) | 12.3 |
| MFD w/ Maps | |
| Yamaha E-Series Features | |
| Drive-By-Wire Technology | |
| Helm Switch Panels | Blue LED Lit |
| Wireless Charging Points | Yes |
| Marine Speakers | 7 |
| Tower Speakers | 2 |
| Stern Stereo Remote | |
| Stern Speakers | |
| 3 position "No Wake Mode™" Control | |
| Cruise Assist | |
| Battery Setup | Dual |
| Quiet Cruise Technology | |
| Integrated Ballast System | |
| Toe-in Jet Nozzle Position | |
| Integrated Electric WakeBooster | |
| Articulating Keel System | |
| Boat Wellness Function Display | Yes |
| Connext Screen (in) | 12.3" Display with Maps & Joystick |
| Connext with Touchscreen | 12.3" display w/ maps & joystick |
| DRiVE X | No |
| Depth Finder | Yes |
| Drive Control | Yes |
| Electronic Speedometer | Yes |
| Enclosed Head Compartment | N/A |
| Rack & Pinion Steering | No |
| Yamaha Marine Engine | Twin 4-cylinder, 4-stroke, 1.9 Liter High Output Yamaha Marine Engines |
|---|---|
| Displacement (per engine) | 3796CC |
| Fuel Capacity | 70 GAL |
| Recommended Fuel | Regular Unleaded |
| 155 MM High-Pressure Pump | |
| Pump Clean-out Ports | |
| Oil Capacity per Engine (L) | 2.6 |
| Fuel Management System | Yes |
| Fuel Tank Capacity (gal) | 70 Gal |
| Fuel Capacity (gal) | 70 Gal |
| Bow Rails | |
|---|---|
| Stainless Steel Pop-Up Cleats | 6 |
| Tow Hook | |
| BiminiTM Top | |
| Aluminum Folding Wakeboard Tower with Tow Hook | |
| Wakeboard Racks | |
| Windshield Mirror | |
| Bimini™ Top | Yes |
| Color | Black / White |
| Hard Top with Panoramic Tinted Skylights | No |
| Head Compartment | N/A |
| Premium Windshield Frame | No |
| Stainless Steel Bow Rails | Yes |
| Stainless Steel Cleats | 6 Pop-up |
| Hard Top | No |
| Painted Trailer with Swing-away Tongue | |
|---|---|
| Galvanized Trailer with Swing-away Tongue | Optional (Tandem Axle) |
| Spare Tire and Mount | |
| Height on Trailer | 11' |
| Height on Trailer with Tower Folded | 9'11" |
| Length on Trailer | 24' |
| Length on Trailer with Tongue Folded | 22'6" |
| Dry Weight on Trailer (lbs) | 5391 |
| Lights | Yes |
| 144 MM High-Pressure Pump | |
|---|---|
| 155 MM High-Pressure Pump | |
| 160 MM High-Pressure Pump |
| BoatWaterCapacityshowersink | No |
|---|---|
| Water Tank Capacity (gal) | No |
Get Local Price
Wakesurf Fun Meets Advanced Technology
The 222XD is a powerhouse of versatility and performance, delivering exhilarating wakesurfing experiences and unmatched low-speed handling control.

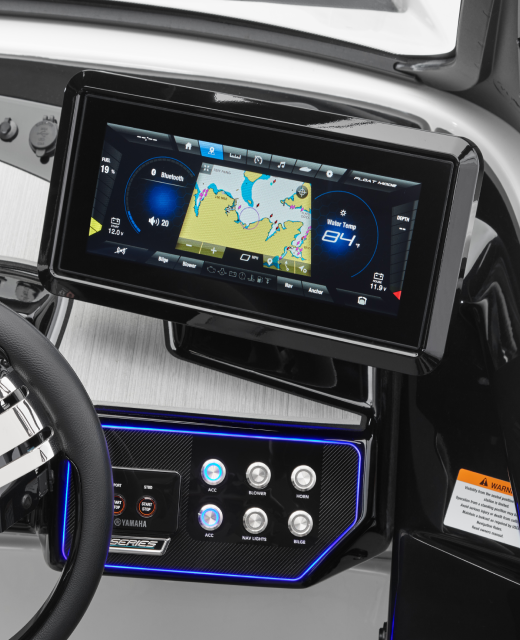

12.3'' Connext® Touchscreen
The 222XD features a cutting-edge Connext touchscreen, the largest that Yamaha offers, seamlessly integrated into its minimalistic, floating helm design.

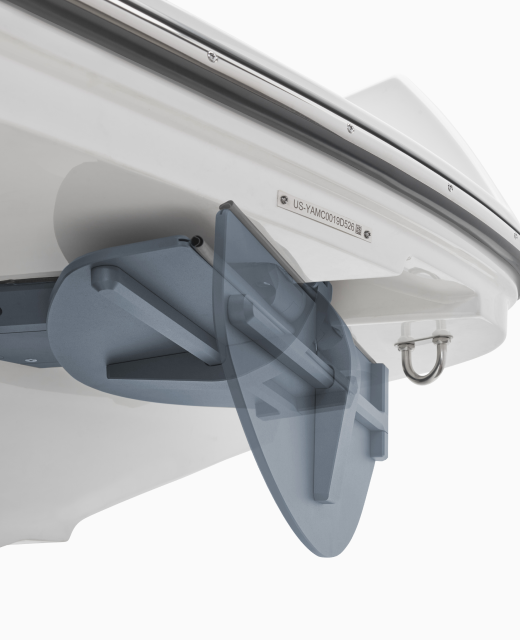

Integrated WakeBooster®
With the push of a button on the Connext® Touchscreen, the integrated WakeBoosters® can be deployed on either side of the boat, creating adrenaline-pumping wakes for wakesurfing.

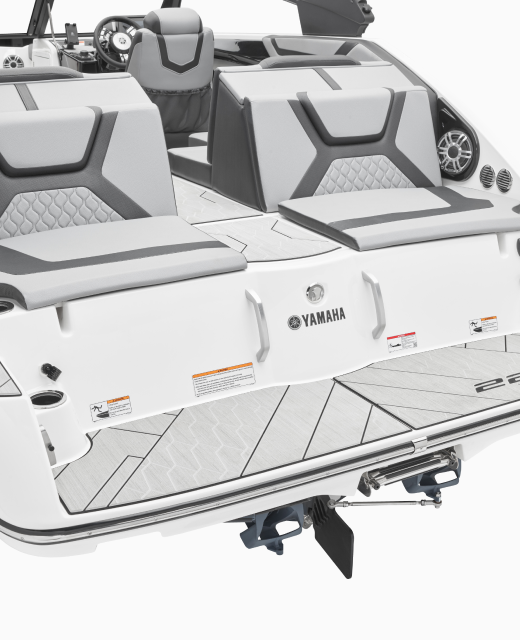

Signature Swim Platform
Featuring a spacious and well-designed swim platform, perfect for enjoying a day on the water. Equipped with two removable seats that sit just below the water's surface, this area provides comfortable in-water seating for relaxation and socializing.

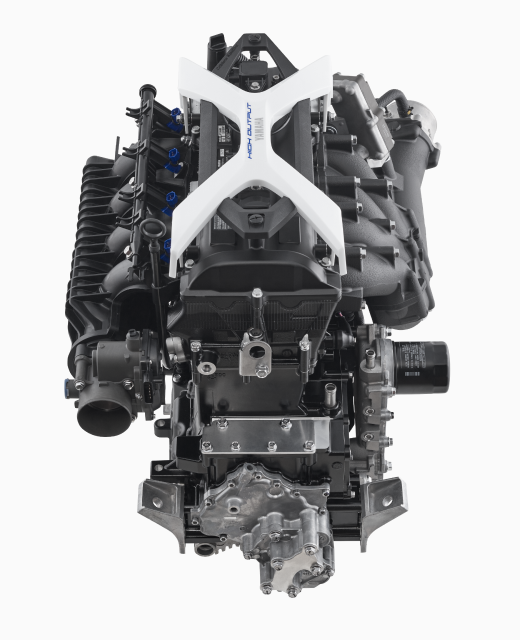

Yamaha 1.9L HO Marine Engines
Equipped with the largest displacement engines in a jet boat today, these twin 1898cc Yamaha marine engines deliver quick and smooth acceleration and class-leading top speeds.

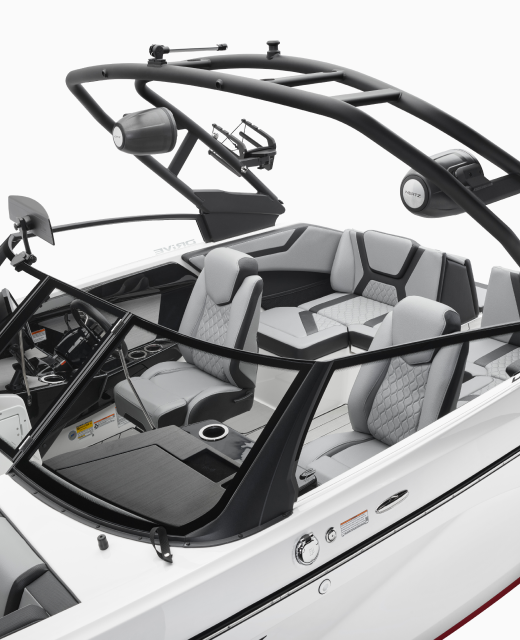

Watersports Tower
The premium, forward-swept aluminum tower is perfect for all watersports fun, adding a stylish touch to your boating experience.

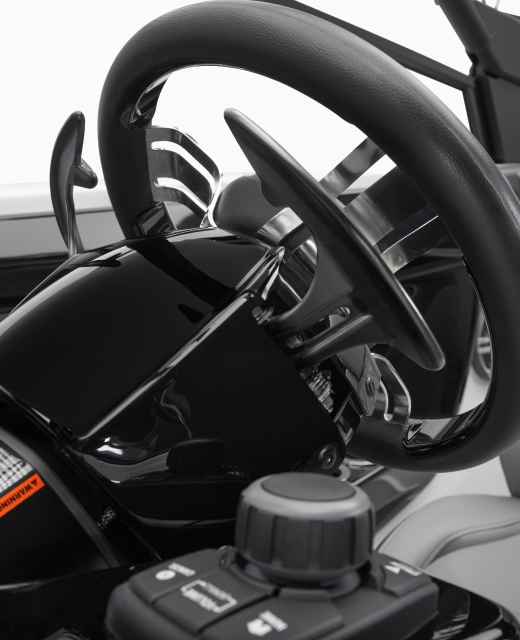

DRiVE® Technology
Experience Yamaha's award-winning DRiVE technology, offering unmatched low-speed handling and maneuverability—setting a new industry standard.
